Pallet Rack Location Labels

Each barcode location label leaving ASG is different from another, the design, content, colors, material and more, combine to make a unique label for a unique pallet location in your facility. At ASG Services, we design mono and full color layouts for print. Color rack location labels are used to help differentiate racking levels, storage zones and in some cases, product groups.

We work closely with customers to establish the best design and content to suit their needs. Often customers will have a predetermined design, others can draw from our experience and archive for a custom design.

Read more about our storage location data management.

Specialist software developed to handle mass variable data in multi field designs, making it possible for us to print high definition barcodes, alpha, numeric and alphanumeric content with ease.

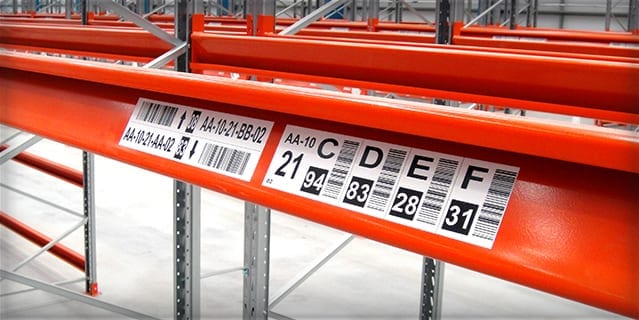

Rack Labels

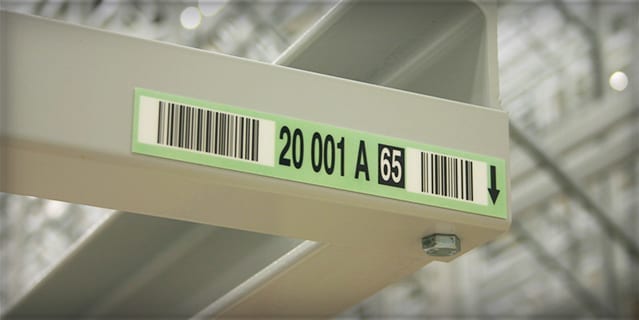

Freezer Labeling



We utilize the latest print technology to create our rack labels. At ASG we believe a high performing barcode is critical to meeting the demands of the fast moving industry they are used in. Barcode scanners have vastly improved in the past 10 years and will now scan most qualities of barcode, however not all facilities have the latest technology and performance. Regardless of technology, we uphold our policies on quality and performance and produce the very best pallet location labels possible.

Advanced materials in label production are important for industrial use, ASG’s polyester rack labels are among the toughest available thanks to the characteristics of polyester. We find they can withstand more impacts than any other base material. In addition, we also apply a protective coating to help shield and protect the print as well as making a slightly thicker and tougher tag. The laminate coating is also high grade polyester.





The key performance benefits of the materials we use:

  • Polyester – An extremely strong and stable material retaining original profile, therefore print clarity and deflection is beyond almost any other, which is perfect for barcode labels.
  • 3M Retro Reflective – Returns a far greater amount of light to the source allowing barcode readers to detect bars from much greater distances, there labels can be placed on high beams for example.
  • Plastic Composite – A formation of several layers to create a rigid label which integrates the print for protection, is much harder wearing and combined with specialist adhesives, idea for cold and harsh environments.

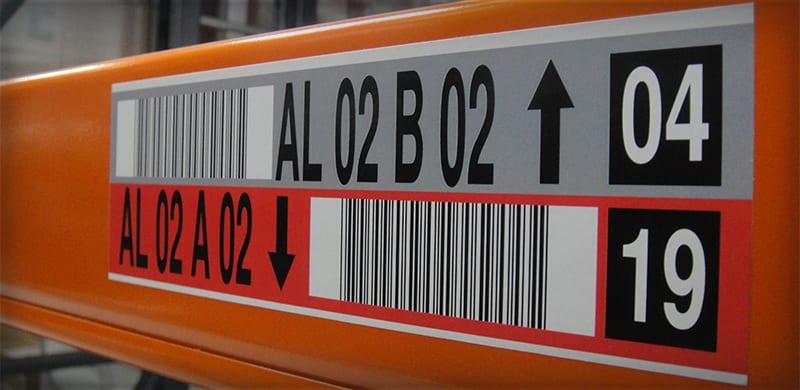

Split Base Rack Label



Our variations can be applied to most materials such as metals, rigid rubber, plastic, smooth wood and concrete.  Backings include clear, magnetic and self adhesive with some thicker adhesives used for rough surfaces.

Most rack labels can be produced as singles or on rolls. The way they are presented is entirely up to the customer, some prefer to have all labels on a roll which can prevent them being mishandled, others prefer singles as it is often easier to install them.

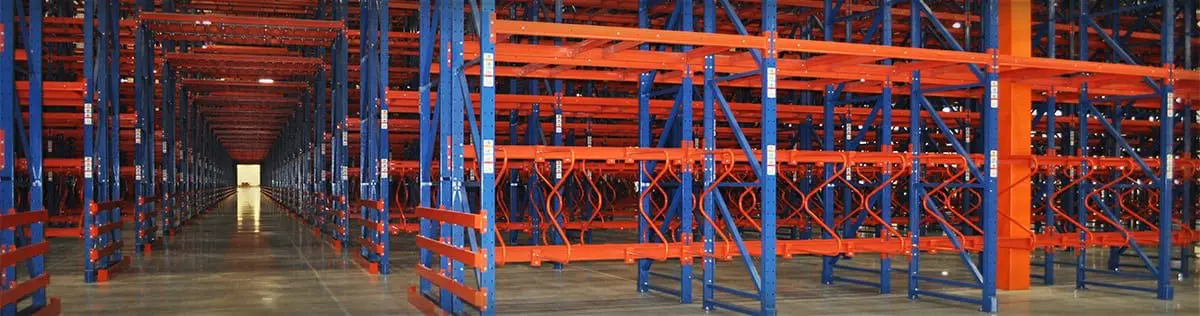

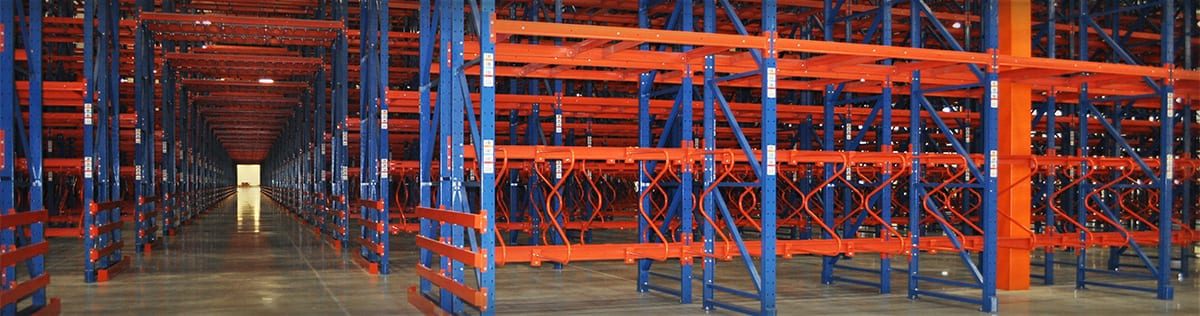

Racking Label Install



Project managed installation services

ASG Services is renowned for its installation project management services.



We provide professional, fully managed and insured installation teams throughout the USA, who install location identification products on a daily basis. Their attention to detail and understanding of warehouse location number sequences is essential in achieving the volume and accuracy they are capable of.

All types of warehouse location labels are installed, including those designed for cold store, multi-level,  magnetic, weight capacity, reflective and flue space indication.



We invite you to contact us and start your project discussions early. The more information we can share the better, such as considerations regarding your racking layout, location numbering convention and any operational restrictions.

Contact us today

Rack Label Installers





Pallet rack label data

Our customers provide label data in various forms, from the very simple to the often very complex. To help improve accuracy and order processing time, we have issued examples of how data can best be prepared by customers, before sending it to us.

We understand the limitations and complexities involved, so please speak to us about your data if you need help, its one of the things we are good at.

Below, you will see the layout example to help with the build and presentation of rack label data. We have suggested the following headings, to help with your data gathering and our data manipulation prior to production. They are:



Pallet Rack Label Data



2D Rack Label



Download your rack label data file hereLocation Data Example



Read more about how to build a warehouse location data file.



Aisle: The aisle reference could be single or multi digit, we used A1, as the first aisle in the row.

Bay: The bay relates to the space between the rack frame legs, where beams stretch across to create shelves.

Level: The level number or letter (Number in our example), relates to the storage level. This could be the floor, or the first beam. We have shown 6 levels here, but yours maybe less or greater.

Location: Within each bay, the slot or location position across the beam, may be 1 to 2, or 3 where pallets are stored, or 01 to 12 or more if small parts are stored on shelves.

Barcode: The barcode content is often all of the location references combined, in a continuous string, some customers use separation symbols, but we have shown the most common continuous method.

Human Readable: This information is generally the same as the barcode information, a combination of the location data. However, customers often add symbols and spaces to make the information easier to read by warehouse operatives.

Arrow Direction: Where arrows are required, adding a simple Up, Down, Left or Right is adequate. We have shown Up and Down as these are to be used on the beams.

Color Code: A significant benefit to location identification is in adding a color to denote levels. A simple word reference is best here and where a particular color reference is required, these should be listed separately. Red, #E04116 for example, added to a separate cell at the top of the page, works best. Printed color match can not be guaranteed.

Barcode Type: Enter the barcode symbology you require, this could be one of many types, so if you are not sure, please ask your system provider, or we can recommend the most common linear or 2D used in the industry.

Quantity: If the formula is updated to cover the full list you create, the quantity of labels will be shown which you can cross reference with other location count information. It helps you ensure all are included and shows us what is needed at a glance.

Tabs: At the bottom of the page, we have show a main and a ‘Type 2’ tab. You may name it differently to related to the location type, label size, project reference, etc. Having separate tabs helps us see which data is for which label and helps you check all needed are included.



Data integrity is the key to any good project and regardless of how we receive it, we will do everything we can to check its as expected and needed, however our production ready versions will not be proofed in the production process, only the latest version we receive from you. Therefore it is critical that you ensure we have the latest available.

Our pricing includes a degree of data manipulation time, however if the data is too complex or problematic, we will inform you of additional time needed and to be charged for. We will also advise of the difficulties so you can reissues the data to avoid those charges.



Rack label types

If this is your first warehouse labeling project, its likely you are unfamiliar with the terminology, usage, positioning, materials and design possibilities.  We understand your situation and frankly, its why we are here, to help you.  Visit our Rack Label Types page to discover more about the stickers that help make distribution centers work.

Types covered:

  • Base,
  • Split Base,
  • Multi-Level Beam,
  • Upper Level Beam,
  • Level Indicators &
  • Upright Location.



Beam and Frame Labels








Please feel free to speak to us about your data, it is very much in our interests to ensure your data is good to go and that we can process the order swiftly, so we are more than happy to help. You can find contact details here.

Download for later
Polyester Location Labels Polyester Location Labels

457.31 KB

Laminated Location Labels Laminated Location Labels

431.29 KB

Upright Location Labels Upright Location Labels

384.33 KB

Cold Store Beam Labels Cold Store Beam Labels

349.31 KB

ASG Installation Services ASG Installation Services

549.63 KB
