Storage Location Data



As specialists in warehouse identification and marking products, ASG Services have many years experience in handling warehouse storage data. We work with the data customers provide and where needed can help with the creation of data.

Customers often generate data files from warehouse management software (WMS) or forward those supplied their WMS providers, consultants, etc., following detailed facility survey.

We also receive building layout and rack drawings of their distribution centers and storage facilities showing enough details for us to establish location referencing logic. Using these details and with confirmation from the customer, we are able to build storage location data files which represent all locations required, corresponding to the various rack and shelf labels, barcode signs, floor labels, etc., so we can provide a full turnkey solution.

Location data can be very complex and extensive, for this reason ASG Services always works closely with the customer who checks and signs off the data along with product designs, before production begins.

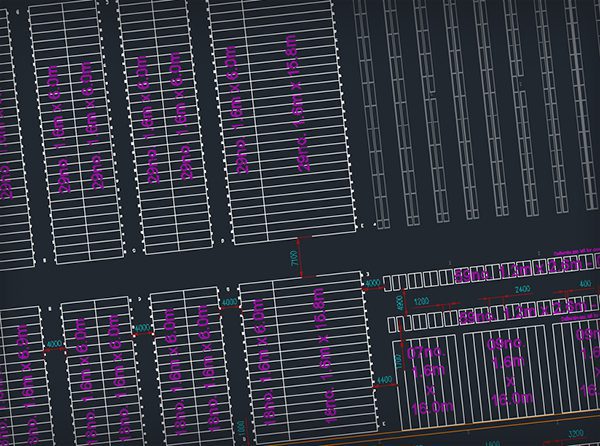

Warehouse Layout Drawing

Warehouse Location Data



How to Build a Warehouse Location Data File



This layout example is to help you build and present your rack label data. We have suggested the following headings, to help with your data gathering and our data manipulation prior to production.  Your data maybe configured differently, this is only suggestive.



Pallet Rack Label Data





Download a data file template for your warehouse labels:

Barcode Sign Data File Rack Label Data File.

Barcode Sign Data File Barcode Sign Data File.

Floor Label Data File Floor Label Data File.

LPN Data File LPN Data File.

Location Label Data File General Barcode Label Data.



The key location data headings are:

Aisle:  The aisle reference could be single or multi digit, we used A1, as the first aisle in the row. Aisle Characters

Racking Aisle



Bay:  The bay relates to the space between the rack frame legs, where beams stretch across to create shelves. Bay Characters

Rack Bay



Level:  The level number or letter (Number in our example), relates to the storage level. This could be the floor, or the first beam. We have shown 6 levels here, but yours maybe less or greater. Level Characters

Racking Level



Location:  Within each bay, the slot or location position across the beam, may be 1 to 2, or 3 where pallets are stored, or 01 to 12 or more if small parts are stored on shelves. Location Character

Slot Location



Barcode:  The barcode content is often all of the location references combined, in a continuous string, some customers use separation symbols, but we have shown the most common continuous method. Barcode Set

Rack Barcode



Human Readable:  This information is generally the same as the barcode information, a combination of the location data. However, customers often add symbols and spaces to make the information easier to read by warehouse operatives.

Human Readable



Arrow Direction:  Where arrows are required, adding a simple Up, Down, Left or Right is adequate. We have shown Up and Down as these are to be used on the beams. Arrow Set

Rack Barcode



Color Code:  A significant benefit to location identification is in adding a color to denote levels. A simple word reference is best here and where a particular color reference is required, these should be listed separately. Red, #E04116 for example, added to a separate cell at the top of the page, works best. Printed color match can not be guaranteed. Color Set

Color Block Indicators

Level Color Code



Barcode Type:  Enter the barcode symbology you require, this could be one of many types, so if you are not sure, please ask your system provider, or we can recommend the most common linear or 2D used in the industry. 2D Rack Label

Human Readable



Quantity: If the formula is updated to cover the full list you create, the quantity of labels will be shown which you can cross reference with other location count information. It helps you ensure all are included and shows us what is needed at a glance.

Location Quantity



Tabs: At the bottom of the page, we have show a main and a ‘Type 2’ tab. You may name it differently to related to the location type, label size, project reference, etc. Having separate tabs helps us see which data is for which label and helps you check all needed are included.

Label Type Tabs





Data integrity is the key to any good project and regardless of how we receive it, we will do everything we can to check its as expected and needed, however our production ready versions will not be proofed in the production process, only the latest version we receive from you. Therefore it is critical that you ensure we have the latest available.



Our pricing includes a degree of data manipulation time, however if the data is too complex or problematic, we will inform you of additional time needed and to be charged for. We will also advise of the difficulties so you can reissues the data to avoid those charges.

Please feel free to speak to us about your data, it is very much in our interests to ensure your data is good to go and that we can process the order swiftly, so we are more than happy to help. You can find contact details here.

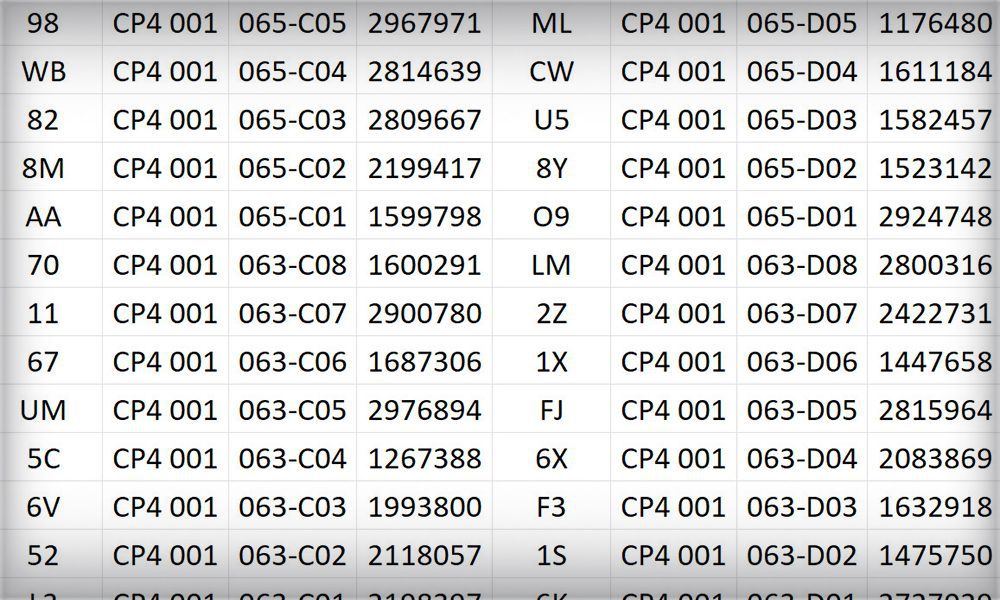

Barcode Data File
